As mentioned in the previous post: Binary Search Basic, binary search also applies to intervals of numbers. In this post, I’ll introduce several use cases of binary search in a more subtle way.

Split Array Largest Sum

Given an array nums which consists of non-negative integers and an integer m, you can split the array into m non-empty continuous subarrays. Write an algorithm to minimize the largest sum among these m subarrays.

(from leetcode 410)

Explanation

The key to this problem is finding how it can be mapped into a binary search problem. Normally, we learn binary search in a problem setting where we want to find a particular target number. However, binary search also applies to finding the max/min number in an interval. We just need to change the condition check a little bit.

The brute-force solution for this problem is to list all the possible ways to split the array A into m non-empty subarrays and record the minimum largest sum we’ve met so far. However, we can directly search the possible minimum sum and reversely check if we can meet the requirement.

• The minimum largest sum is the largest element in the array because when m==len(A), we are minimizing every subarray’s sum. The maximum largest sum is the sum of the whole array when m==1.
• For each possible largest sum s we want to check:
  • if it’s possible to split the array into m parts, we move to the left of the interval because we want to find the minimum. Also, we need to update minimum result we’ve seen so far.
  • if it’s not possible to split the array into m parts, suggesting s is too small, we move to the right.

Python3 Implementation

def splitArray(self, nums: List[int], m: int) -> int:

    def validate(s):
        # validate if it's possible to split the array when max_subarr_sum == s
        split = 1
        split_sum = 0
        for n in nums:
            split_sum += n
            if split_sum>s:
                split_sum = n
                split += 1
                if split>m:
                    return False
        return True

    l, r = max(nums), sum(nums)
    res = r+1
    while l<=r:
        mid = l + (r-l)//2
        if validate(mid):
            res = min(res, mid)
            r = mid -1
        else:
            l = mid + 1
    return res

Kth Smallest Element in a Sorted Matrix

Given an n x n matrix where each of the rows and columns is sorted in ascending order, return the kth smallest element in the matrix. Note that it is the kth smallest element in the sorted order, not the kth distinct element. You must find a solution with a memory complexity better than O(n^2).

(from leetcode 378)

Explanation

To find the kth element in a collection of elements, a common approach is to use heap. For this problem, since the given matrix has a sorted feature, I’ll start from a binary search perspective.

We want to find the kth element and the matrix is sorted, the search interval is bounded by the top left element and bottom right element. Since they are the smallest and largest elements in the matrix respectively.

After fixing the search interval, given a number $x$, we want to find a way to decide whether we should move to the left or to the right. For $x$ to be the kth smallest element, there must be $c$ elements that are smaller than or equal to the element x.

• if c>k: x is too large, we need to move to the left
• if c< k: x is too small, we need to move to the right
• if c=k: there are exactly k elements that are smaller than or equal to the element x. However, we don’t know if x is in the matrix.

We cannot return a value that is not in the matrix. Instead of going through all the matrix and check its existence, we can just return the minimum element that meets the $c>=k$ condition. I’ll explain this decision with an example in the next section.

Another similar problem is leetcode 668 Kth Smallest Number in Multiplication Table

Example

Assume we are given a 4*4 matrix as follow and we want to return the 13th element in the matrix, i.e. we want to return 10 as the correct result.

I’ll explain the steps when $x=11, x=10, x=9$ separately. Each case the steps are similar:

• we start from the top right corner and initialize a counter=0 to keep track of the number of elements that are <= x
• when the current element is <= x, move the pointer downwards and add the number of elements up to the current element to counter
• when the current element is > x, move to left

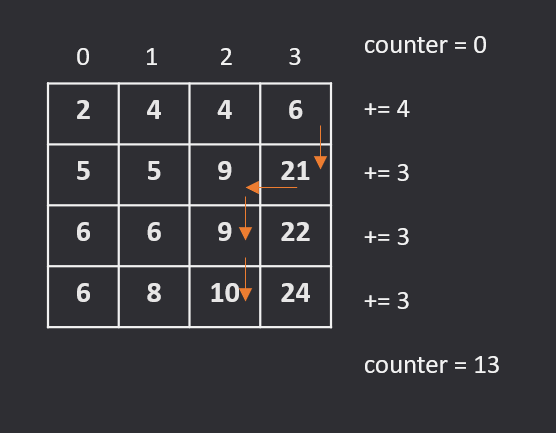

when x=11

when x=10

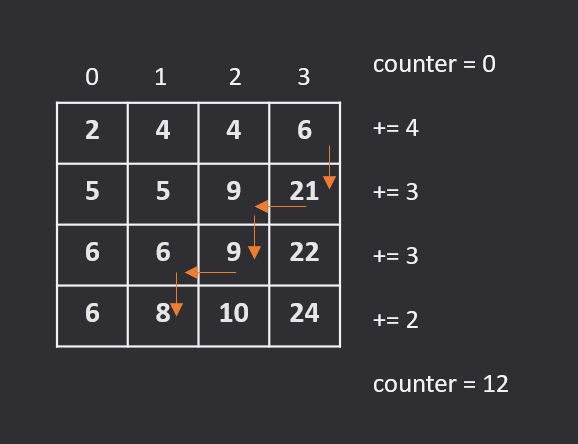

when x=9

We can observe that counter result is the same when x=11 and x=10. However, 10 is present in the matrix and 11 is not. Therefore, in the binary search, we can update the final result whenever counter>=k to keep track of the minimum number that meets the requirements.

Python3 Implementation

def kthSmallest(matrix: List[List[int]], k: int) -> int:
    n = len(matrix[0])
    l, r = matrix[0][0], matrix[n-1][n-1]
    min_res = r+1
    def count_kth(x):
        counter = 0
        i, j = 0, n-1   # intialize at the top right corner
        while i<n and j>=0:
            if x<matrix[i][j]:
                # move to the left
                j -= 1
            elif x>=matrix[i][j]:
                # move downwards
                i += 1
                counter += (j+1)
        return counter

    while l<=r:
        mid = l + (r-l)//2
        if count_kth(mid)>=k:
            min_res = min(mid, min_res)
            # make sure the element exists in the matrix
            # return the smallest possible in the range
            r = mid-1
        else:
            l = mid+1
    return min_res

bisect module

Sometimes, the bianry search module is not a major point that the interviewer wants you to focus on. Python provides a bisect module for doing a binary search on a sorted list. The common usages are:

• bisect.bisect_left(a, x, lo=0, hi=len(a), key=None): Locate the insertion point for x in a to maintain sorted order. If x is already present in a, the insertion point will be before (to the left of) any existing entries. key specifies a key function of one argument that is used to extract a comparison key from each input element.
• bisect.bisect_right(a, x, lo=0, hi=len(a), key=None)
