Boyer–Moore majority vote algorithm is an algorithm that is used to detect the majority elements in an array. In this post, I’ll explain its application in the majority element problem and a more general case.

Majority element

Given an array nums of size n, return the majority element. The majority element is the element that appears more than ⌊n / 2⌋ times. You may assume that the majority element always exists in the array.

(from Leetcode 169)

We can think of the elements as multiple parties against each other. Each element can cancel out one element that is different from itself. Since major element will always out-number the non-major ones (by problem’s definition). We know that if we keep track of the number of elements that have’t been canceled out, the final answer after we traverse all array is the major element.

We can use two variables to help with the process: majority and count. For each element $a$ we visit,

• if a==majority, we increment the count by 1.
• if a!=majority and count==0, we change majority to be $a$ and increment count by 1. This means that all the elements we’ve visited have cancelled each other.
• if a!=majority and count!=0, we decrement count by 1. The final value stored in majority is the majority element we want to return. The time complexity is O(n) and space complexity is O(1).

Example

Given an array [7, 5, 5, 7, 3, 7, 7], the result should be 7.

array:       [7, 5, 5, 7, 3, 7, 7]
majority:     7, 7, 5, 5, 3, 3, 7
count:        1, 0, 1, 0, 1, 0, 1

Python3 implementation

def majority_element(A:List[int]) -> int :
    majority = A[0]
    count = 0

    for a in A:
        if a == majority:
            count += 1
        else:
            if count == 0:
                majority = a
                count += 1
            else:
                count -= 1

    return majority

Heavy hitter problem

You are reading a sequence of numbers. You are allowed to read the sequence twice. Devise an algorithm that uses O(k) memory to identify the words that occur more than $n/k$ times, where n is the length of the sequence.

(From EPI 24.31)

Explanation

The gerneralized algorithm for this problem is a bit unituitive. Here’s an excellent ⭐explanation from Stackexchange.

Example

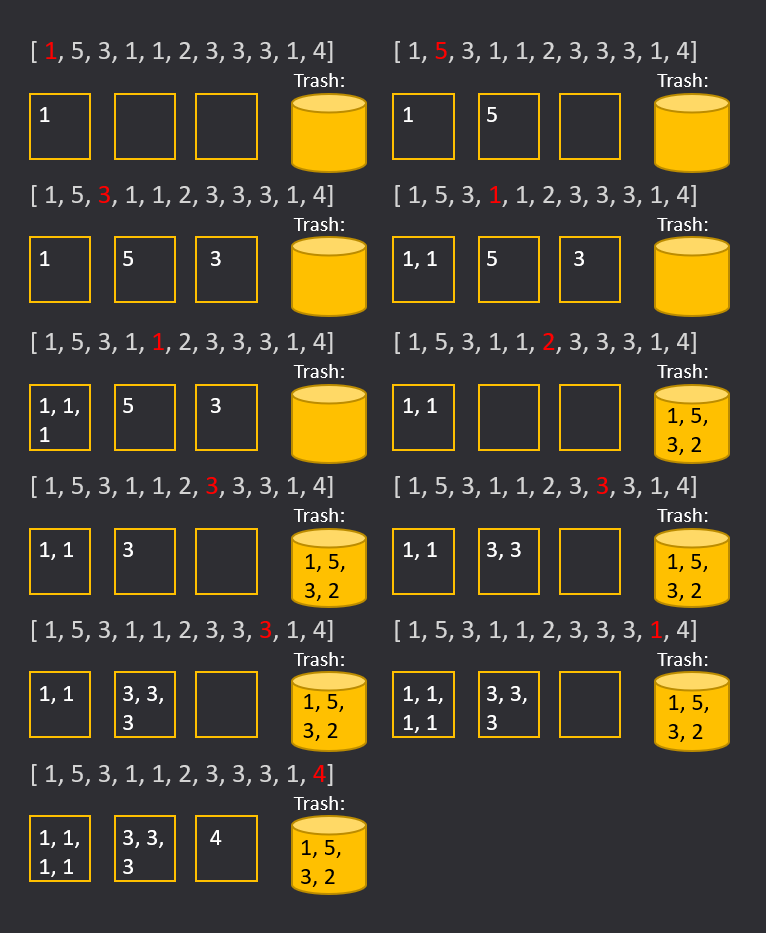

An example of this algorithm is: given an array [1, 5, 3, 1, 1, 5, 3, 3, 3, 1, 4]. The steps are as follows:

After visiting all 11 elements, all three blocks are filled and 4 elements are in the trash section. The second pass is crucial because we can only guarantee that the elements stored in the blocks appear more than n/(k+1) times instead of n/k times. Therefore, in the second pass, we need to count the actual occurrence of the elements in the blocks and filter out the elements that fails to meet the n/k requirements.

Naturally, we can use a hashmap to store the visited elements and their counts in the blocks. And we don’t need to keep track of the trash since these elements won’t be used in the final result.

The time complexity is still O(n) and space complexity is related to the size of k so it’s O(k).

Python3 implementation

def heavy_hitter(A:List[int], k:int) -> List[int]:
    buckets = {}
    n = len(A)

    for a in A:
        if len(buckets)==k:
            if a in buckets:
                buckets[a] += 1
            else:
            # if buckets are full and a is not in the buckets
            # we want to remove one element from every bucket
                for b in buckets:
                    buckets[b] -= 1
        else:
            buckets[a] = 1 + buckets.get(a, 0)
        # remove all entries where value ==0
        buckets = dict((k,v) for k,v in buckets.items() if v>0)

    # reset count in buckets
    for b in buckets:
        buckets[b] = 0

    # update actual counts for elements in buckets
    for a in A:
        if a in buckets:
            buckets[a] += 1

    return [e for e, c in buckets.items() if c>(n/k)]
