We start from finding the max rectangle in a histogram, then apply the simialr idea to finding the max rectangle in a 2D array filled with 1.

Max rectangle in a histogram

Given an array of integers heights representing the histogram’s bar height where the width of each bar is 1, return the area of the largest rectangle in the histogram.

(from leetcode 84)

Explanation

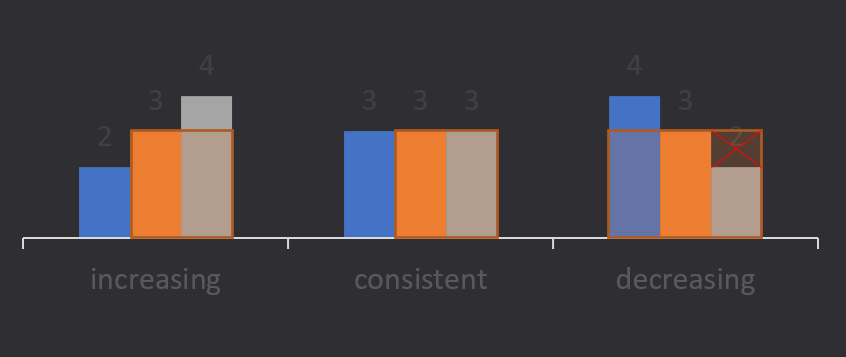

We can start off by doing a case analysis. We want to process the histogram one by one and modify the rectangle size we’ve visited. By observing a histogram array example, there are three trends in the given graph: increasing, consistent, decreasing.

• increasing: we can extend the width of the rectangles to the right.
• consistent: we can extend the width of the rectangles to the right.
• decreasing: we cannot extend the width to the right, thus it’s a good time to compute the rectangles’ size. Notice how we can reversely extend the width of the rectangle.

Since increasing and consistency have the same result, we can merge them into a single condition.

We will use a stack to store the histogram height and its index.

• increasing&consistent: add height and index to the stack
• decreasing: pop all elements that are higher than the current height. Compute the rectangle size with the height we just popped and the width is the current_idx-poped_idx. Update the max_size if needed. Push the height to the stack and set the index to be the last index we just poped. (For reversely tracing back the rectangle)

An implementation trick is to append 0 to the end of the histogram so that the iteration will automatically pop the left heights from the stack and compute the max_area.

The overall time complexity and space complexity are both O(n).

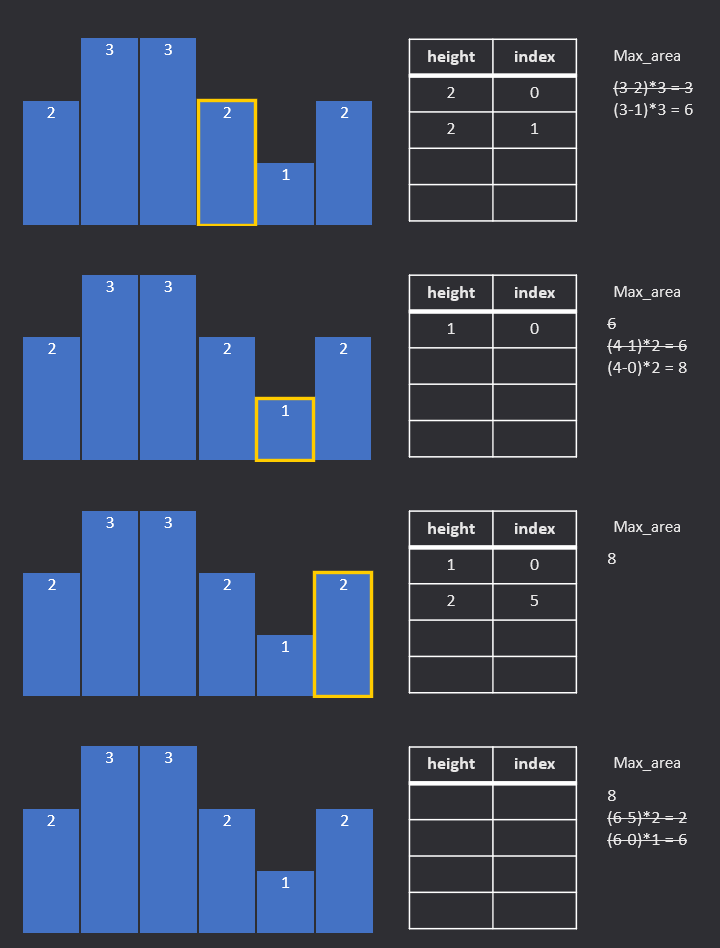

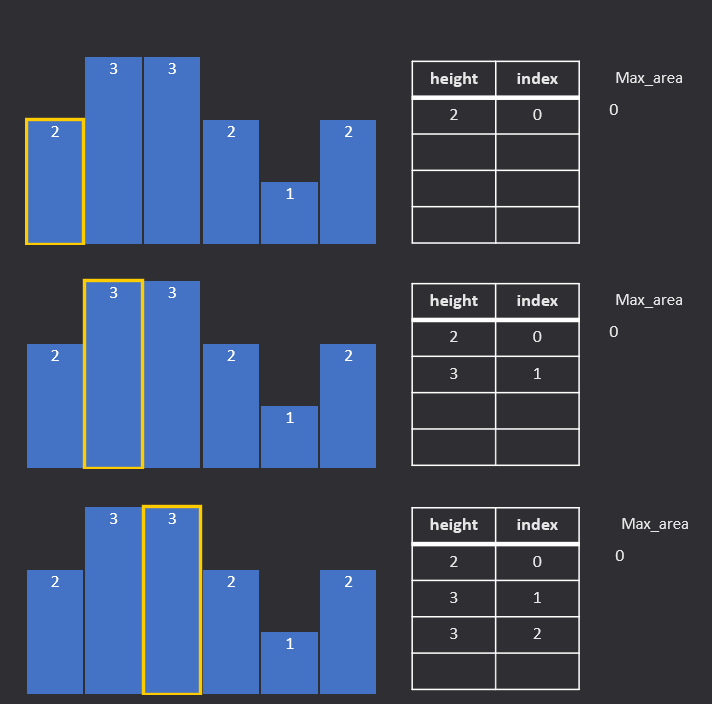

Example

Python3 implementation

def largestRectangleArea(heights: List[int]) -> int:
    s = []
    max_area = 0

    for cur_i, cur_h in enumerate(heights+[0]):
        left_i = cur_i  # keep track of the left starting point of a rectangle
        while s and s[-1][0]>cur_h:
            height,prev_i = s.pop()
            width = (cur_i-prev_i)
            max_area = max(max_area, width*height)
            left_i = prev_i

        s.append((cur_h, left_i))

    return max_area

Maximal rectangle in a 2d array filled with 1

Given a rows x cols binary matrix filled with 0’s and 1’s, find the largest rectangle containing only 1’s and return its area.

(from leetcode 85)

Explanation

We can treat the 2d array as multiple histograms. Apply the above algorithm row by row and update the max rectangle area accordingly. If the input array is a $m*n$ 2d array, the time complexity is O(mn) and space complexity is O(n) since we need an extra row to store the hisotgram heights.

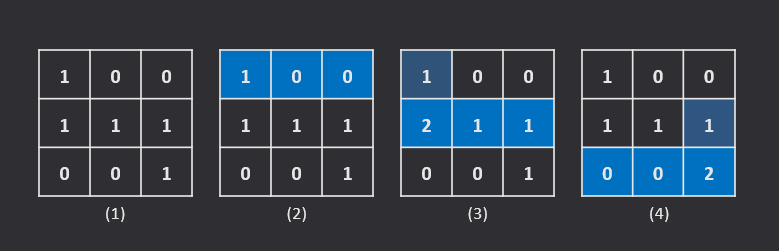

Example

In this example, the max rectangle size should be 3. It can be found by the largestRectangleArea() function with an input of [2, 1, 1] as shown in figure(3).

Python3 implementation

def maximalRectangle(matrix: List[List[str]]) -> int:
    heights = [0]*len(matrix[0])
    result = 0
    for row in matrix:
        for i, c in enumerate(row):
            if c == "1":
                heights[i] += 1
            else:
                heights[i] = 0
        result = max(result, largestRectangleArea(heights))
    return result
